Structural Cantilever Arm

The structural cantilever arm is the main horizontal support component in a cantilever racking system. It is mounted on the upright column to support long and heavy materials such as steel pipes, timber, industrial bars, and structural components. Made from high-strength steel, the arm ensures durability and high load capacity. The arm can be adjusted vertically along the column to accommodate different storage requirements. Some arms have a slight forward incline to stabilize stored items and prevent slipping. Its modular design allows easy expansion of the racking system in the future.

Technical Specifications:

• Arm length: 0.6 m / 0.9 m / 1.2 m

• Arm height (thickness): 7.6 cm / 10.2 cm / 12.7 cm

• Material: high-strength structural steel

• Bolt pattern: standard for securely fastening to uprights

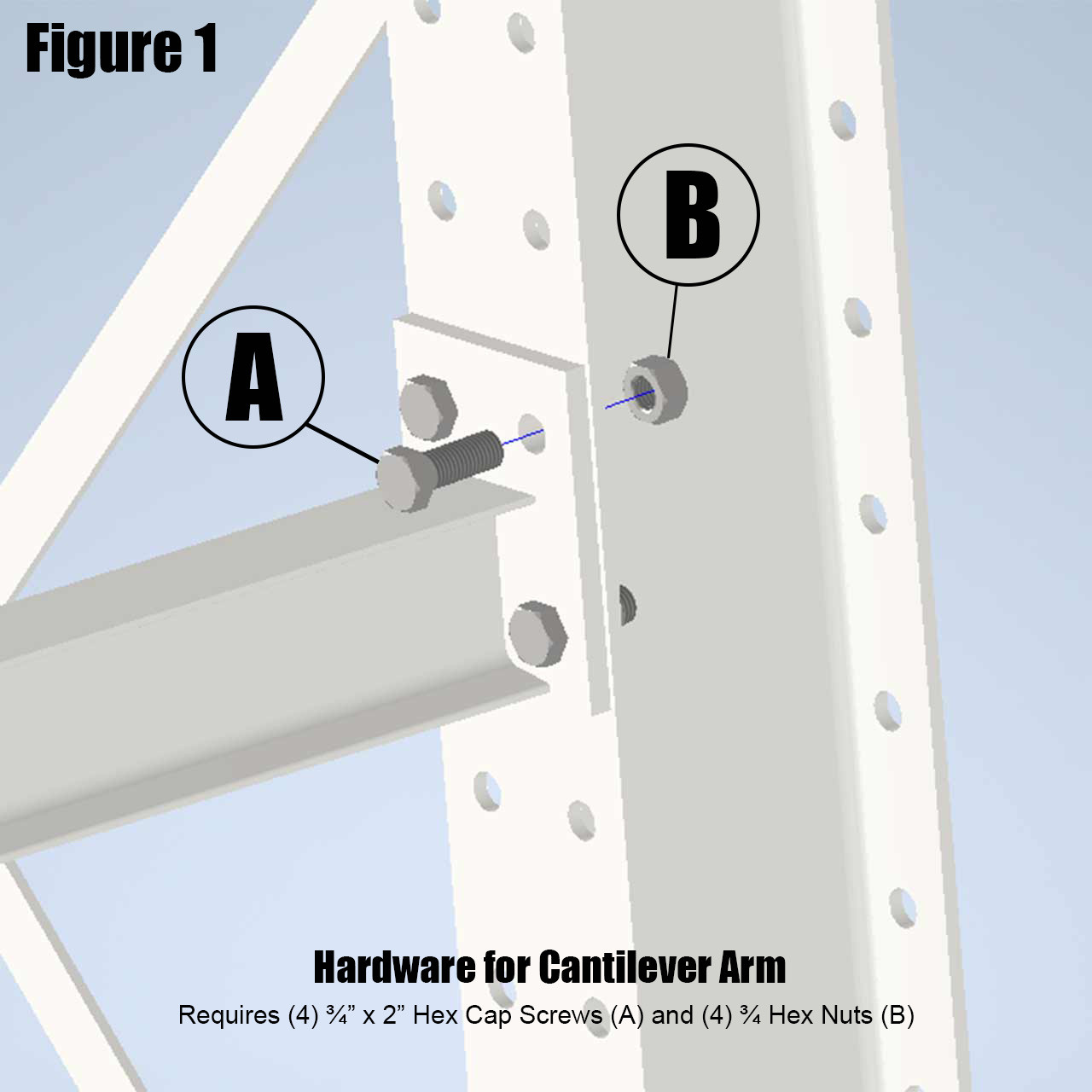

• Hardware: appropriate bolts and nuts required

• Inclination: slight forward incline on some models for better load retention

• Finish: powder-coated or galvanized for corrosion resistance

• Load capacity: depends on arm length, arm section, and configuration (number of arms per column, spacing, bracing)

Vietpos Rack is a leading provider of industrial racking solutions in Vietnam, specializing in the design, manufacture, and installation of cantilever racks, pallet racks, and medium-duty racks. We offer high-quality components such as arms, uprights, bases, and bracing, all flexible and modular. With our structural cantilever arms, you can maximize storage space for long and heavy materials while ensuring stability, safety, and scalability of your warehouse system.
