The pipe storage rack is an essential support system serving as a structural method for mounting and carrying piping that runs throughout the plant. It connects all equipment (installed at different locations) with pipelines that cannot be routed through adjacent areas.
Pipe racks are also commonly used for other purposes, as they can carry electrical cables, instrument wiring, fire-fighting systems, lighting fixtures, etc. Air-cooled heat exchangers or fan-type heat exchangers are often supported on the pipe rack to reduce plant space requirements.
Technical Specifications
| Dimensions (mm) | Weight (kg) | Finish | Capacity (tons) |
|---|---|---|---|
| L | W | H | |
| 2300 | 1115 | 1300 | 58 |
| 2300 | 1215 | 1300 | 95.5 |
| 2300 | 1315 | 1300 | 61 |
| Customized sizes available upon request |
Main Features
-
This product is applicable to industries such as plastic pipe manufacturing (PVC, PE, PP pipes), rubber hoses, steel pipe fabrication, transportation, and other industrial sectors.
-
The rack adopts a fixed overall welded structure, providing high strength and durability, with a maximum dynamic load capacity up to 2,500 kg.
-
The racks can be stacked after loading, with a maximum stacking height of 6 meters, optimizing space utilization.
-
The rack can be nested alternately when unloaded, facilitating transportation and storage, and saving up to 75% of storage space.
-
The number of bottom cross braces can be adjusted according to the characteristics of the stored materials.
-
During loading and unloading, horizontal displacement is fully restricted, ensuring that the pipe frames placed on the rack do not slip off.
-
Multiple surface treatment options are available, such as powder coating or cold galvanizing. Specifications can be customized according to user requirements.

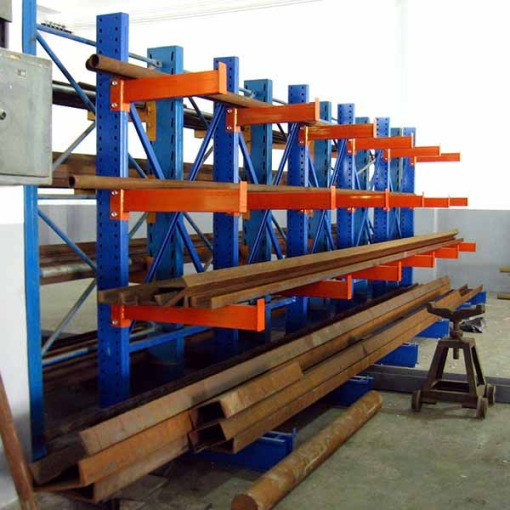

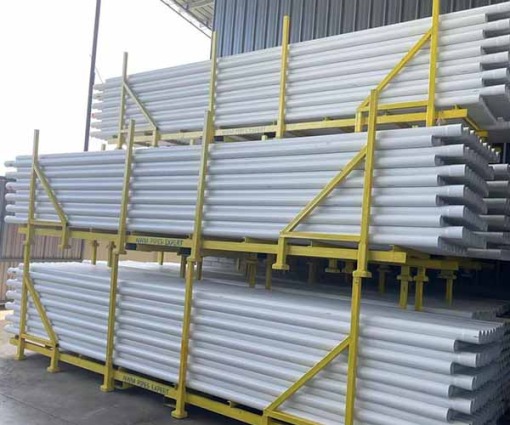

Actual Product Images
Why Choose Pipe Storage Racks from VIET POS RACK?
-
With many years of experience in the industrial racking and material handling industry, including heavy-duty racks, steel pallets, and medium-duty shelving systems, VIET POS RACK has successfully served and satisfied numerous major partners. We are confident in delivering high-quality, standard-compliant products for your business.
-
Our team of professional engineers and skilled technicians designs and fabricates all structures in accordance with European standards, ensuring high safety, exceptional strength, and aesthetic quality.
-
In addition, when you choose VIET POS RACK, you will be supported by a dedicated and knowledgeable consulting team, committed to providing complete customer satisfaction.
With years of industry experience, our philosophy always prioritizes customer benefits.
VIET POS RACK looks forward to the opportunity to serve and partner with your business.
