Cantilever Horizontal Brace

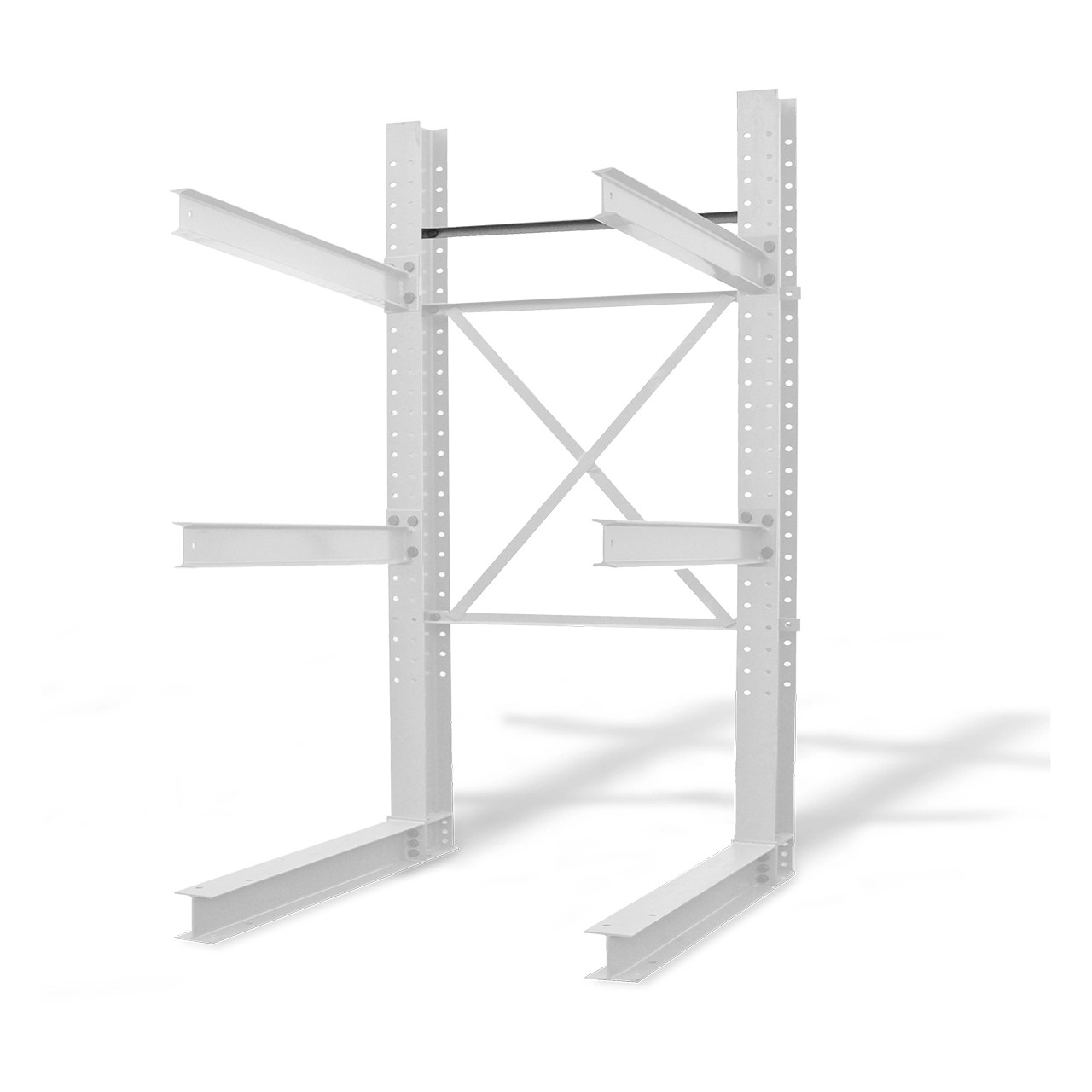

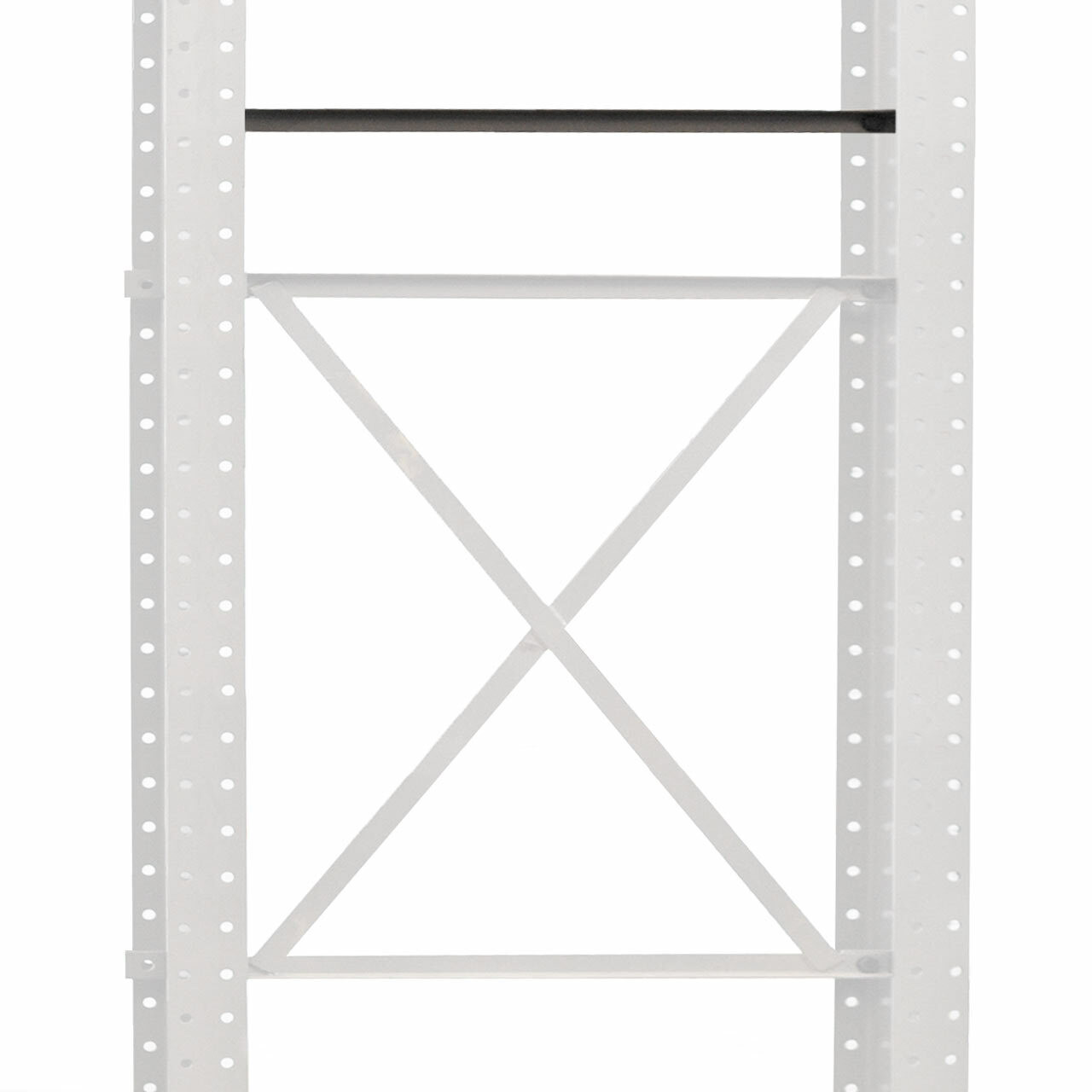

The horizontal brace is a critical structural component in a cantilever racking system. It connects upright columns horizontally to enhance the overall stability of the rack. When properly installed together with X‑braces, it minimizes lateral movement and provides a robust frame for storing long, heavy, and bulky items such as steel pipes, timber, and bars. Made of durable structural steel with standard bolt holes, the horizontal brace ensures reliable assembly and safety. The required number of braces depends on the height of the uprights: taller columns will require more braces for adequate reinforcement.

Technical Specifications:

• Material: high-strength structural steel

• Brace width: 1.22 m or 1.52 m (depending on rack design)

• Finish: light-gray or custom coating per design

• Configuration requirements:

  • For medium-height uprights (e.g., ~2.4 m–3.6 m): use 2 horizontal braces with 2 X‑braces

  • For taller uprights (above ~3.6 m): use 3 horizontal braces with 2 X‑braces

• Fastening: requires appropriate bolts and nuts (not included)

• Function: provides lateral stability, reduces sway, ensures rack safety

Vietpos Rack is a professional industrial racking solutions provider in Vietnam, specializing in the design, fabrication, and installation of cantilever racks, pallet racks, and medium‑duty racks. We supply high-quality components including horizontal braces, X‑braces, arms, uprights, and bases — all engineered to ensure stability, durability, and scalability for your warehouse storage needs.
